Variables Value
Material Class Food Grade
Max Capacity 24000/21000/18000
Loading Capacity max 96-97%
Number of layers (excluding sleeve) 3 PE + 1 PP
Sleeve (Yes/No) Yes
Nett weight (Kg) 42
Dimension (mm) 6840 x 2200
Dimension Packing (mm) 1020 x 50 x 40
Thickness (mm) 0.125 ± 6%
Tensile Strength (MD) (MPa) 35
Tearing Strength (ASľDM 1004) 15 N
Minimum Temperature Allowed -20°C
Maximum Temperature Allowed 65°C
Valve Type 3” FG Ball Valve
Flange Design Bolts & Nuts
SKU: wp-pennant-2 Category:
Enquire Via WhatsApp

Description

Material Specification

With its high quality  materials, our bags  could hold most Non-  DG Liquid Products for distant transports

Name Performance Test Method Test Standard Test Result
PE Mechanical  Properties of  The Raw  Materials Thickness (mm) ASTM D645 0.125 ±0.01 0.124
Tensile Str.

(Mpa)

Warp Direction ASTM D882 ≥35 38.5
Warp Direction ASTM D882 ≥35 40.9
Elongation at  Bíeak (%) Warp Direction ASTM D882 ≥600 663.8
Warp Direction ASTM D882 ≥600 780.5
Thermal  Performance Heat-seal Way 8+2 8+2
Max Load (N) ASTM D882 ≥90 120
Tensile Strength (Mpa) ASTM D882 ≥40 78
PP Mechanical  Properties of  The Raw  Materials Tensile Str.

(Mpa)

Warp Direction GB/T 1039 ≥1800 2015
Warp Direction GB/T 1039 ≥1800 1996
Elongation at

Break (%)

Warp Direction GB/T 1039 16~20 17.5
Warp Direction GB/T 1039 16~20 18.2
Strength of PP

Stitches

Max Load (N) GB/T 1039 ≥1000 1050
Elongation at Break (%) GB/T 1039 ≥40 46.7

Reviews

There are no reviews yet.

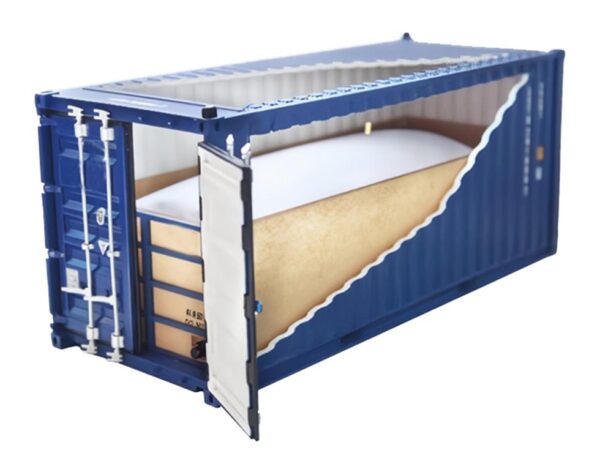

Be the first to review “Top Loading Top Discharge (TLTD)”
