Description
Material Specification

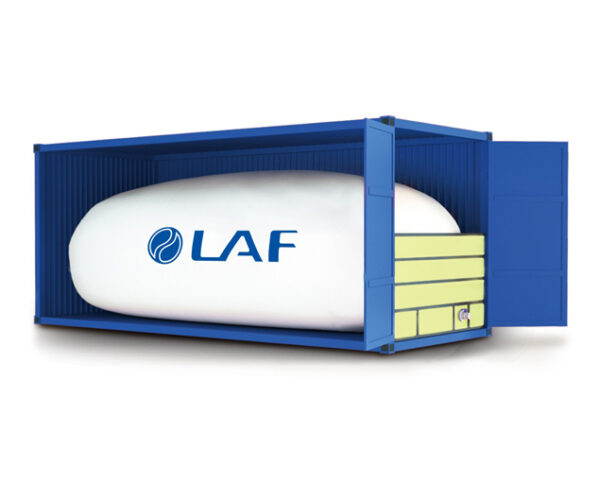

With its high quality materials, our bags could hold most Non- DG Liquid Products for distant transports
| Name | Performance | Test Method | Test Standard | Test Result | ||
| PE | Mechanical Properties of The Raw Materials | Thickness (mm) | ASTM D645 | 0.125 ±0.01 | 0.124 | |
| Tensile Str.
(Mpa) |
Warp Direction | ASTM D882 | ≥35 | 38.5 | ||
| Warp Direction | ASTM D882 | ≥35 | 40.9 | |||
| Elongation at Bíeak (%) | Warp Direction | ASTM D882 | ≥600 | 663.8 | ||
| Warp Direction | ASTM D882 | ≥600 | 780.5 | |||
| Thermal Performance | Heat-seal Way | 8+2 | 8+2 | |||
| Max Load (N) | ASTM D882 | ≥90 | 120 | |||
| Tensile Strength (Mpa) | ASTM D882 | ≥40 | 78 | |||
| PP | Mechanical Properties of The Raw Materials | Tensile Str.
(Mpa) |
Warp Direction | GB/T 1039 | ≥1800 | 2015 |
| Warp Direction | GB/T 1039 | ≥1800 | 1996 | |||
| Elongation at
Break (%) |
Warp Direction | GB/T 1039 | 16~20 | 17.5 | ||
| Warp Direction | GB/T 1039 | 16~20 | 18.2 | |||
| Strength of PP
Stitches |
Max Load (N) | GB/T 1039 | ≥1000 | 1050 | ||
| Elongation at Break (%) | GB/T 1039 | ≥40 | 46.7 | |||
